首頁 > 產品中心 > 內燃叉車 > FGL30/35

產品介紹

提供中國BY 491、日產K21/K25、TALY BRC變流器、日本NIKKI等各種發動機類型，均具有優良的動力性和經濟性油耗。

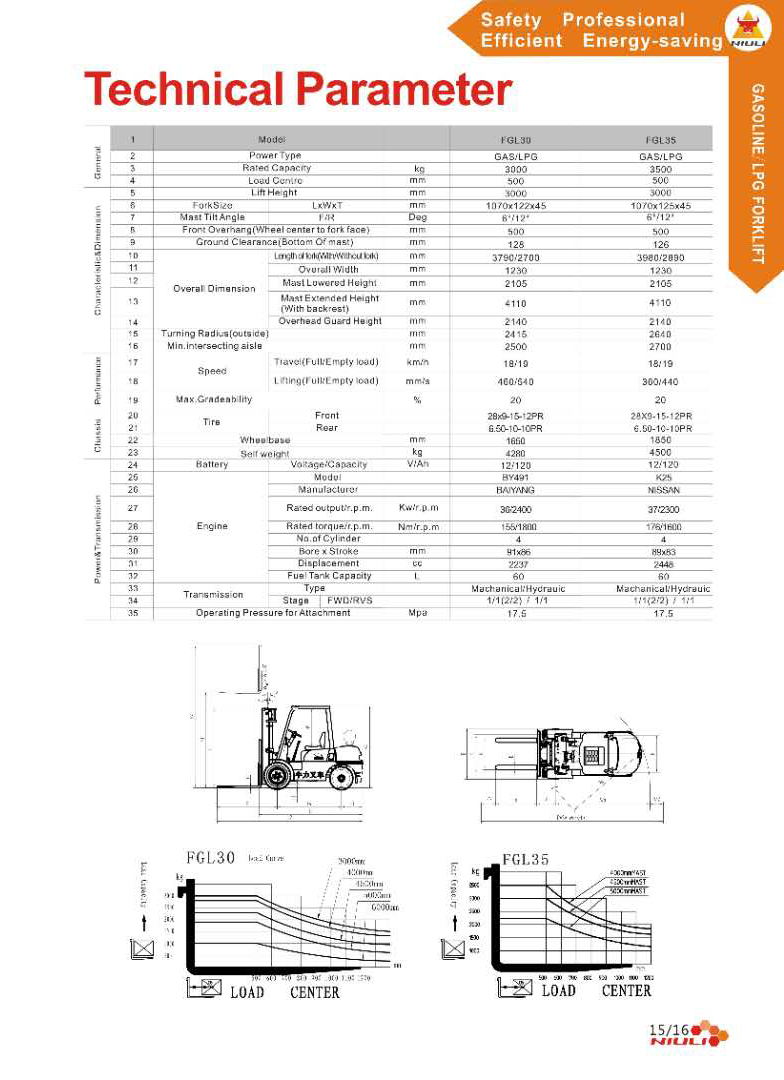

產品參數

Model			Unit	FGL30	FGL35
Power Type				GAS/LPG	GAS/LPG
Rated Capacity			kg	3000	3500
Load Centre			mm	500	500
Lift Height			mm	3000	3000
Fork Size	LWT		mm	107012245	107012245
Mast Tilt Angle	F/R		Deg	6°/12°	6°/12°
Front Overhang(Wheel center to fork face)			mm	500	500
Ground Clearance(Bottom Of mast)			mm	128	128
Overall Dimension	Length of fork(With/Without fork)		mm	3790/2700	3980/2890
	Overall Width		mm	1230	1230
	Mast Lowered Height		mm	2105	2105
	Mast Lowered Height(With backrest)		mm	4110	4110
	Overhead Guard Height		mm	2140	2140
Turning Radius(outside)			mm	2415	2640
Min.intersection aisle			mm	2500	2700
Speed	Travel(Full/Empty load)		km/h	18/19	18/19
Speed	Lifting(Full/Empty load)		mm/s	460/540	360/440
Max.Gradeability			%	20	20
Tire	Front			28*9-15-12PR	28*9-15-12PR
Tire	Rear			6.50-10-10PR	6.50-10-10PR
Wheelbase			mm	1650	1850
Self weight			kg	4280	4500
Battery	Voltage/Capacity		V/Ah	12/120	12/120
Engine	Model			BY491	K25
	Manufacturer			BAIYANG	NISSAN
	Rated output/r.p.m.		Kw/r.p.m	36/2400	37/2300
	Rated torque/r.p.m.		Nm/r.p.m	155/1800	176/1600
	No.of Cylinder			4	4
	Bore × Stroke		mm	91*86	89*83
	Displacement		cc	2237	2448
	Fuel Tank Capacity		L	60	60
Transmission	Type			Machanical/Hydrauic	Machanical/Hydrauic
Transmission	Stage	FWD/RVS		1/1(2/2) / 1/1	1/1(2/2) / 1/1
Operating Pressure for Attachment			Mpa	17.5	17.5

產品詳情
